Mod's and add-ons

Some pictures of early modifications and add-ons:
- 8K memory (adding 4 k, 8 x 2114's)
- Extended video (32x48 characters, original was 16x48. Adding 1 k memory, some wiring and new decoding logic)
- The RUN-led (shows if the uP is executing or if its hangs, just like VAXes of the 80's! Yepp, I'm an old DEC employee....)

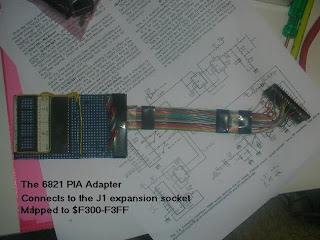

- The PIA adapter (parallell interface adapter, 6821. Connected to J1 directly, mods to IC17)

Other mods were:
- 600 baud cassette-speed (later retrograded to 490), switchable for printing
- RS232 interface (adding some components)
- SCART cable (the most recent mod, interfacing to TV-sets of today!)

Future mods would be:
- The uP running at 2 MHz clock (a Go/Nogo test...we'll see...)
- Getting rid of dark lines during scrolling (procedure exist on web)
